107
107

107
5 LUG

FINISH:
Polished
SIZES:
17x7, 17x8, 17x9, 18x8, 18x9
DESCRIPTION:

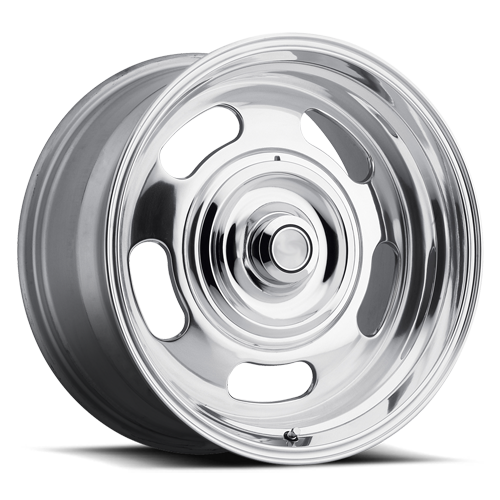

The REV Classic 107 Aluminum Rally comes in a polished or painted silver center and has a built in mirror machined trim ring. The 107 is available in 5 and 6 lug bolt patterns. All original factory GM cap styles fit the 107 and are available. Optional Police Cap W/ Bowtie Shown. Caps are not included. Licensed Chevrolet Caps Also Available.

Technical Specs

Size BP BP 2 Part Number Finish Bore Offset BSM (in) Cap Num Weight (lb)
17X7 5x120.65 5x127 107P-7700600 Polished 78.10 0 4 21
17X7 5x120.65 107P-7706100 Polished 72.70 0 4 21
17X7 5x120.65 5x127 107S-7700600 Silver/Trim Ring 78.10 0 4 21
17X8 5x120.65 5x127 107P-7800600 Polished 78.10 0 4.500 22
17X8 5x120.65 107P-7806100 Polished 72.70 0 4.500 22
17X8 5x120.65 5x127 107S-7800600 Silver/Trim Ring 78.10 0 4.500 22
17X9 5x120.65 5x127 107P-7900600 Polished 78.10 0 5 26
17X9 5x120.65 5x127 107S-7900600 Silver/Trim Ring 78.10 0 5 23
Size BP BP 2 Part Number Finish Bore Offset BSM (in) Cap Num Weight (lb)
18X8 5x120.65 107P-8800600 Polished 78.10 0 4.500 28
18X8 6x139.7 107P-8808300 Polished 87 0 4.500 25
18X8 5x120.65 5x127 107S-8800600 Silver/Trim Ring 78.10 0 4.500 25
18X8 5x120.65 107S-8806100 Silver/Trim Ring 72.70 0 4.500 25
18X8 6x139.7 107S-8808300 Silver/Trim Ring 87 0 4.500 25
18X9 5x120.65 5x127 107P-8900600 Polished 78.10 0 5 28
18X9 5x120.65 107P-8906100 Polished 72.70 0 5 28
18X9 6x139.7 107P-8908300 Polished 87 0 5 28
18X9 5x120.65 5x127 107S-8900600 Silver/Trim Ring 78.10 0 5 27
18X9 5x120.65 107S-8906100 Silver/Trim Ring 72.70 0 5 28
18X9 6x139.7 107S-8908300 Silver/Trim Ring 87 0 5 28
Size BP BP 2 Part Number Finish Bore Offset BSM (in) Cap Num Weight (lb)
20X8 5x120.65 5x127 107S-2800600 Silver/Trim Ring 78.10 0 4.500 41
20X8 5x120.65 107S-2806100 Silver/Trim Ring 72.70 0 4.500 41
20X8 6x139.7 107S-2808300 Silver/Trim Ring 87 0 4.500 41
20X9.50 5x120.65 5x127 107S-2950600 Silver/Trim Ring 78.10 0 5.250 42
20X9.50 6x139.7 107S-2958300 Silver/Trim Ring 87 0 5.250 42
